Electric Mobile Robotic Platform Intelligent Fire Fighting Robot Base AVT-12T
Electric Mobile Robotic Platform Intelligent Fire Fighting Robot Base AVT-12T
Regular price
$4,048.56 USD
Regular price
$6,072.84 USD
Sale price
$4,048.56 USD
Unit price
per
Taxes included.
Couldn't load pickup availability
Note: We can provide freight service, such as sea freight, the freight price is cheaper than the express price you see, please contact us, we will provide you more information and quotation!
Friends, welcome to our store, you can tell me your specific product requirements, if you need other models of this product, please contact me, I will send the product link for your purchase! WhatsApp/WeChat: Aida +86 19074935331 (Reply within 5 minutes) Email: yihua.aida@gmail.com (Reply within 8 hours)Mode: AVT-12T electric mobile robotic platform intelligent fire fighting robot base AVT-12T
Features:
1. 175mm ground clearance, excellent traffic capacity.

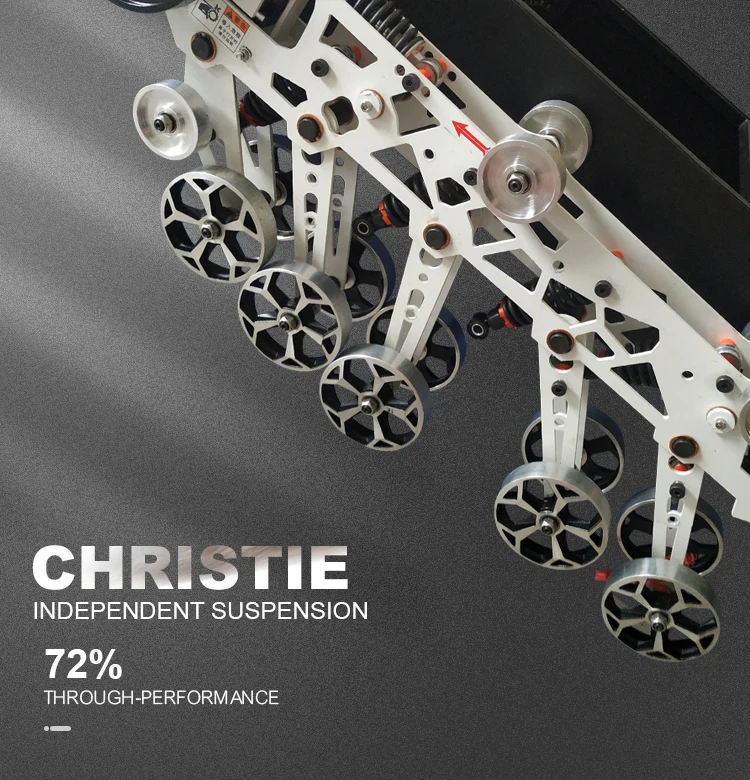

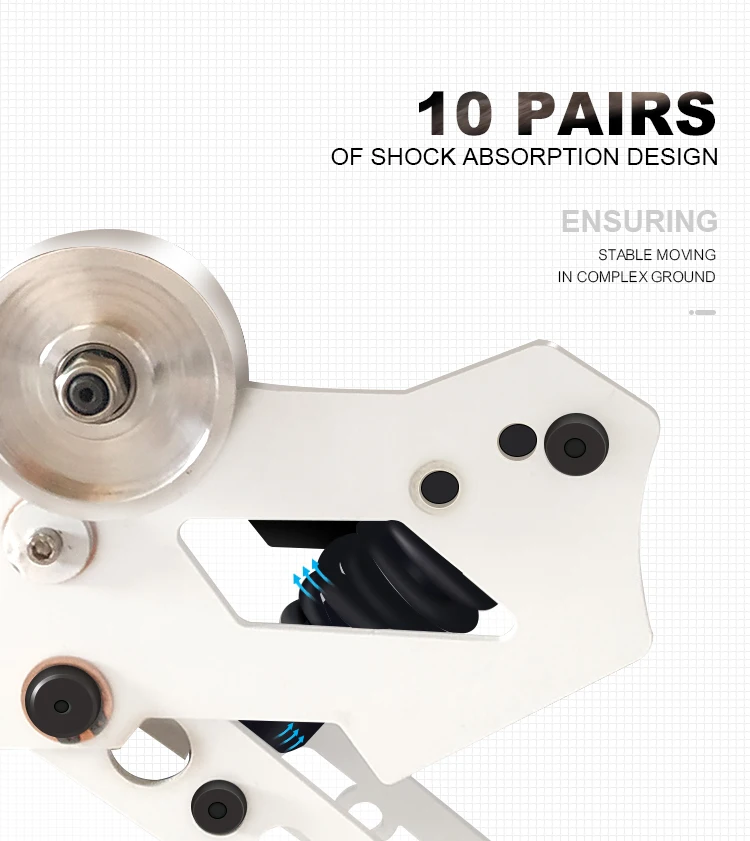

2. Christie independent suspension, 72% ground ratio.3. 10 groups of shock absorption design, ensure stable moving on complex ground.

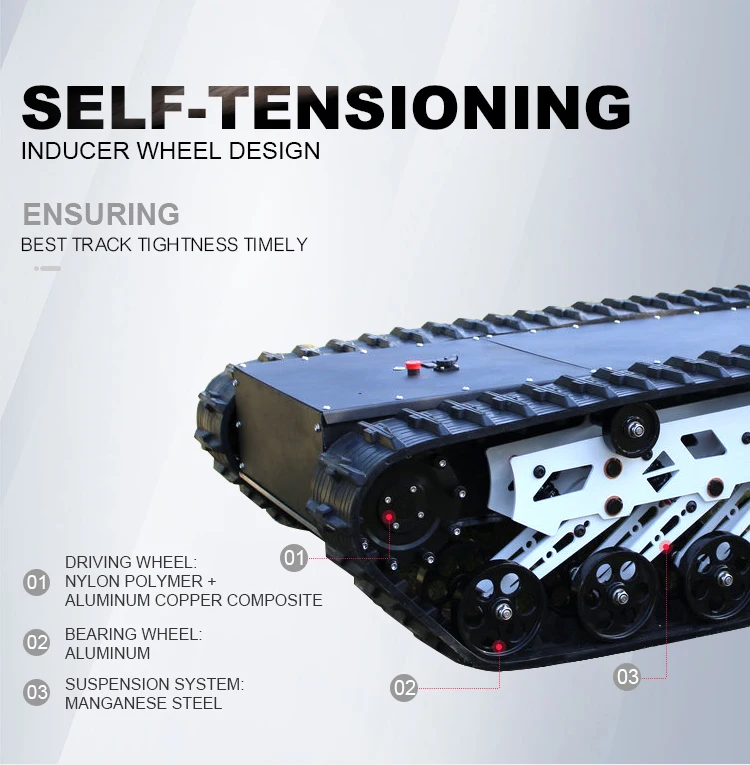

4. Self-tensioning inducer wheel design, ensure best track tightness timely.

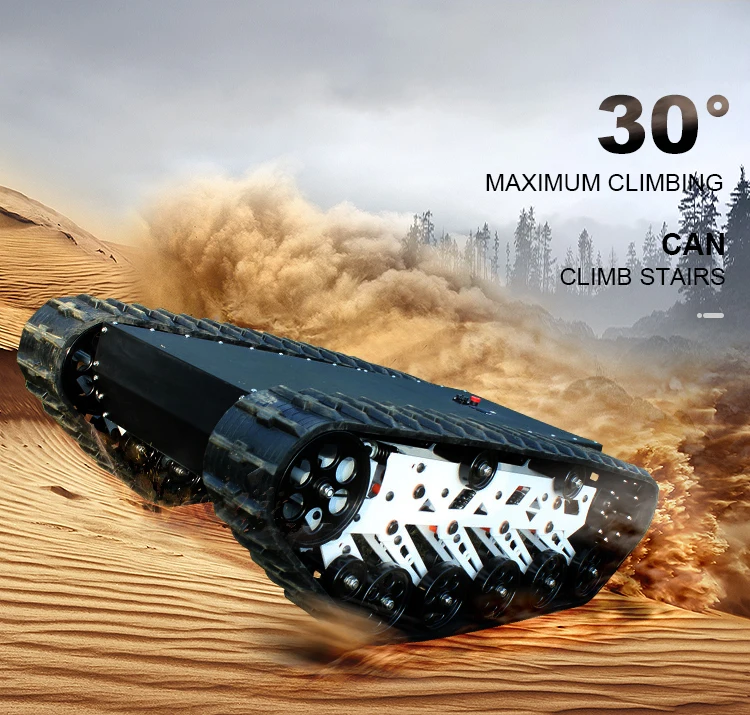

5. Can climb stairs.
Introduction:

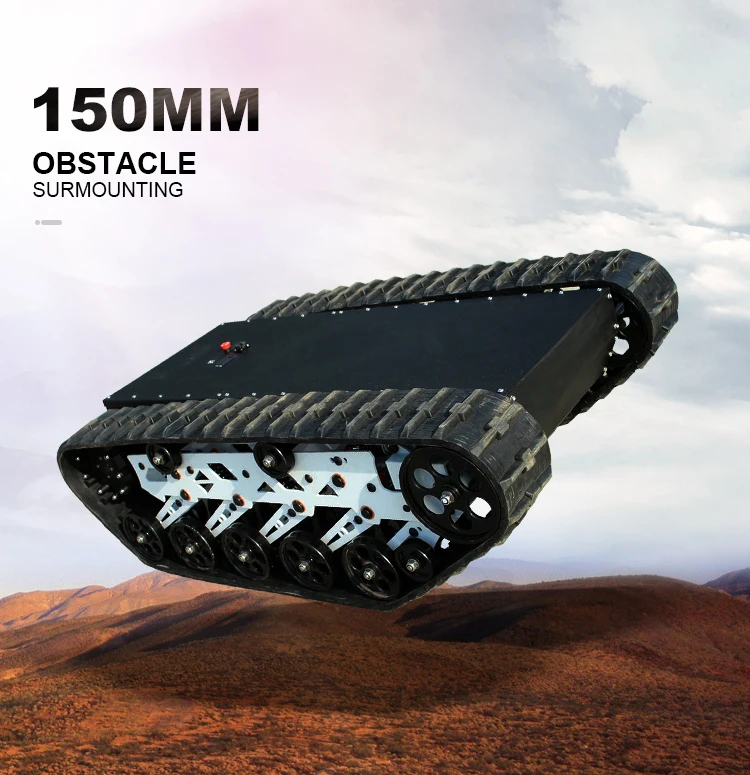

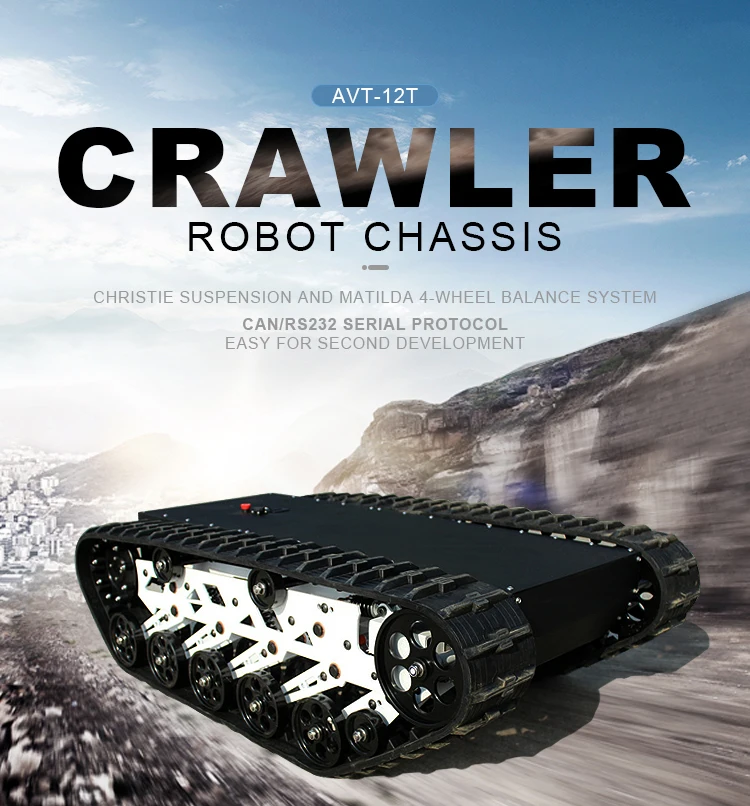

With classic suspension design, automatic tension track, optimized vehicle structure, AVT-12T provides a wider stable platform for the customers. The vehicle adopts christy independent suspension design, 50mm shock stroke, 10 groups suspension arms and automatic tensioning suspension system, it's suitable for the smooth running on the complex haline surface. It has superior obstacle climbing capacity, modular design, easy replacing components, wireless control, can realize zero radius rotation, 4degrees of freedom.
|
Model
|
AVT-12T
|

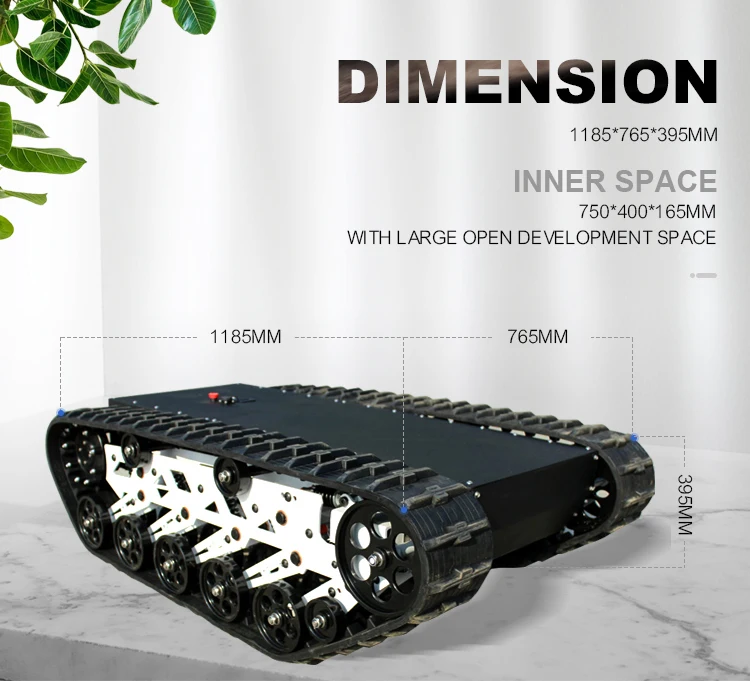

Dimension
|
1185*765*395mm
|
|
Self Weight
|
135kg
|

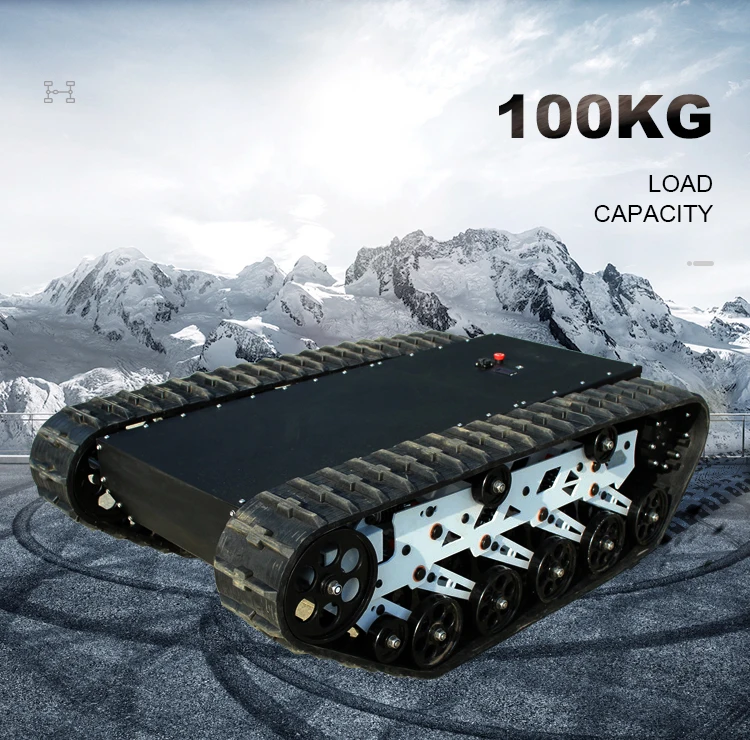

Loading Capacity
|
100kg
|
|
Track Width
|
150mm
|
Inner Space
|
595*365*220mm
|
|
Chassis height
|
200mm
|
Max. Span Distance
|
300mm
|
|
IP Grade
|
IP54
|
Suspension System
|
Independent*10
|
|
Wheel Material
|
Aluminum
|
Drive Ratio
|
15
|
|
Reducation Ratio
|
1:7.5
|
Rated Torque
|
60NM
|
|
Running Speed
|
0-6.5km/h
|
Motor Power
|
1000W*2
|
|
Drive Wheel Diameter
|
160mm
|
Climbing Ability
|
Max. 30°, can climb stairs
|
|
Motor
|
48V Brushless DC Motor
|
Body Material
|
304 stainless steel/alloy steel plate/aluminum/ high polymer material
|
|
Track Material
|
Quality Rubber Embedded with Kovlar Fiber
|
Surface Treatment
|
Black coating (dull polish)
|
Within 3-5 working days after receiving full payment.
Wooden case or as customer's requirements.
|
Our Services
|
|
|
|
1 year warranty for main parts
|
During this period, in case of damage or breakdown, we will repair to replace spare part freely, while the buyer should bear
overseas freight. |
|
|
Spare Parts
|
most of our spare parts are compatible with international standard. While, we offer spare parts all year round at cost price for
our former clients. |
|
|
Operation and Maintenance
|
we will offer you detailed operation manual, ensuring you can use it perfectly.
|
|
|
Online support
|
Video technical support
|
|
|
Online Service
|
your question will be answer within 24 hours during working days, 48 hours during holiday.
|
|
